This Wireless HD Video Solution enables wireless transmission of video/audio from any HDMI video source , such as PC/HDTV to display devices that includes HDTV/HD Monitor over the 2.4GHz/5.8GHz band, with very low latency.
It does not require any special configuration of software driver installation-simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding indoor/outdoor professional environments.
This Wireless HD Video Transmission Solution is widely applicable to family entertainments, office presentation, lecture, education, medical treatment, party, conference etc.
Features
-
Support HD devices with HDMI input/output, include Blu-ray player, DVD player, PC, laptop, HDTV etc.
-
Support resolution: 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz
-
Support IR remote control function to control source device content from long distance
-
Transmitter have one local loop out.
-
Low latency <200ms
-
Effective Range: 200m/656ft in 2.4G, 120meters in 5.8G, could through-wall between the two rooms.
-
No cable between sender (TX) and receiver (RX)
-
Easy and clean installation
-
Plug & Play – full hardware design, no software is required
Note:
Transmission distance will be different due to the environment
Wall, brick or glass will shorten the signal cover range or cause big signal loss
Specification
Video
-
Standard Protocol: HDMI 1.3; HDCP 1.2
-
Maximum pixel clock: 165MHz
-
Maximum data rate: 6.75Gbps
-
Resolution: 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz,720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz
-
Connector: HDMI-A
-
Impedance: 100Ω
-
Compress Formats: H.264
IR
-
Interface: 3.5mm earphone seat
-
Signal direction: Unidirectional
-
IR frequency: 38kHz
WIFI
-
Frequency: 2.4GHz/5.8GHz
-
Transmission distance: Max :200m/656ft
-
Wireless Standard: 802.11AC
Other
-
Power supply: The power adapter: DC 5V/2A
-
Power dissipation: MAX 6W
-
Temperature: Operating: -5℃ ~ +70℃
-
Humidity: Operating: 5% ~ 90%
-
Dimension: 120*82*25mm

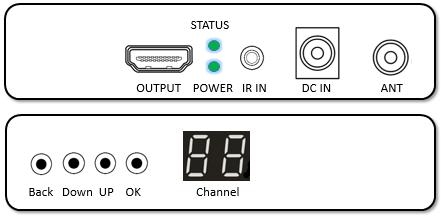

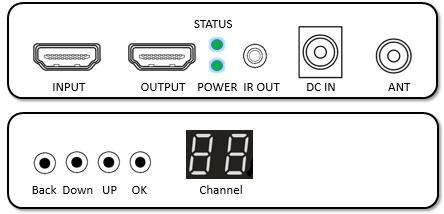

Installation
Port name/Description
-
HDMI IN/OUT: HDMI signal input/output
-
IR IN/OUT: IR signal input/output
-
DC IN: Power adapter socket
-
Channel: Display Channel
-
Back Down UP OK Key: Adjust 2.4G/5GHz channel.
LED indicator/Description
-
STATUS: Video signal connection indicator
-
POWER: System power indicator
